    VESSEL MANUFACTURING UNIT

    Shop Floor Area – 11,000 sq.m

    • Covered Area – 8316 sq. m.
    • No. of Bays – 2
    • Bay Size – 27m wide x 154m long
    • Crane Lift – 13m & 8.5m (Cranes operating at 2 different levels with assembly area of 20m x 20m & assembly pit of 10m x 8m x 6m deep, so that jobs as high as 19m can be vertically handled.)
    • Crane Span – 25m
    • Largest size of job that can be accommodated Height – 19m Diameter – 25m

    HEAT EXCHANGER UNIT

    • Covered Area – 2640 sq. m.
    • No. of Bays – 2
    • Bay Size – 15m wide x 110m
    • Crane Lift – 8m
    • Crane Span – 13m

    MATERIAL HANDLING

    • Maximum lifting capacity – 100 MT
    • Cranes 60/30/20/15/10 tones – 11 nos.
    • 2-ton jib cranes with Electric Hoist – 4 nos.
    • Mobile cranes 20-ton capacity boom length 90 feet – 1 no.
    • Mobile crane 10 Ton (Hydra) – 1 no.
    • Track Mounted Trolleys – 3 nos.

    HEATING FURNACE (2 NO)

    • Bogie Hearth (oil fried) for stress relieving & normalizing.
    • Bogie capacity maximum – 25 MT
    • SR Furnace with temporary roof of size 6m wide x 13m lg x 4m ht
    • No. of Thermocouples – 12 (6 for furnace & 6 for metal temperature)
    • Dimensions – 8.5m depth x 4.5m width x 4.0m height
    • Maximum temperature – 1200 degree C

    ROLLING MACHINE

    • Capacity – 1.8 to 3 m wide
    • Thickness – Cold – up to 105 mm
    • Minimum Diameter – 250 to 600 mm
    • Make – Southwark, Himalaya
    • Quantity – 5 Nos.

    WELDING EQUIPMENT/PROCESS

    • Automatic submerged arc welding with column & boom and self-aligning rotators. This machine can weld all types of circumferential & longitudinal joints. i) Make – Advani Oerlikon ii)Model – UP-15-CP (BM)
    • SAW LAE 800 with Tractor – 2 nos.
    • SAW CPRA 1200 with Tractor – 1 no.
    • TIG welding – for Stainless Steel, Ferrous, and non-ferrous materials.
    • Pulsed TIG welding – for Stainless Steel & sheet metal & difficult fit-ups.
    • Shielded Manual Metal Arc welding i) D.C Generator – 10 nos. ii) D.C Rectifier – 40 nos. iii) MIG Welding m/c -5 nos.
    • Welding Rotators with idlers i) 100 MT Capacity – 1 no. ii) 50 MT Capacity – 3 nos. iii) 30 MT Capacity – 1 no. iv) 20 MT Capacity – 1 no.

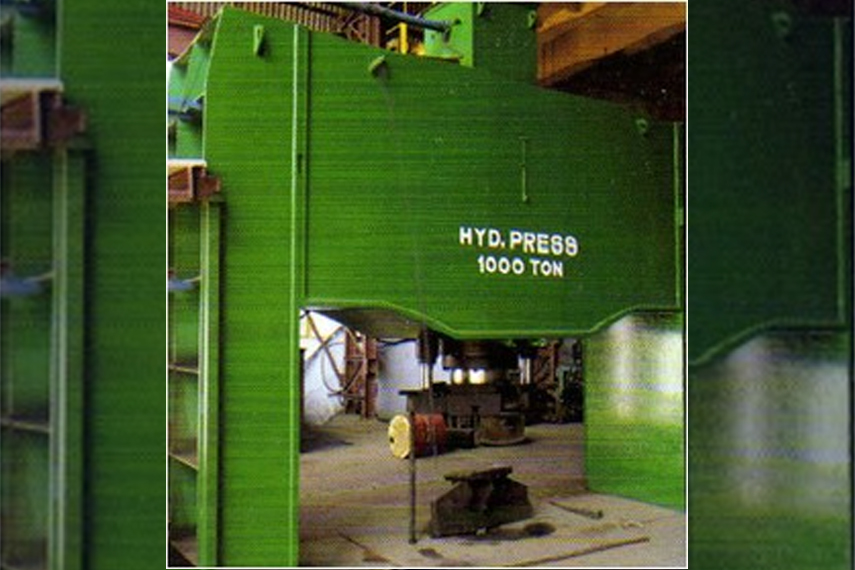

    HYDRAULIC PRESS (2 NO)

    • Make – BEMCO/STERLIN
    • Capacity – 1000 MT each
    • Stroke – 900mm, 1500mm
    • Day Light – 2800mm x 5000/6000mm
    • Dished end capacity – 6mtr. Dia
    • Pressing Capacity (Max) – 150 mm

    TUBE EXPANDER

    • Power master tube expanding drive F=3N with torque multiplier.
    • P series three rollers adjustable thrust collar type.
    • Fully automatic solid state digital torque panel TSD-S-23010 Mandrels with adoption of different size expanders for various sizes of tube expanding.

    HORIZONTAL BORING & DRILLING MACHINE

    • Make – Skoda, Czechoslovakia
    • Type – W200, HB-NC (with CNC control)
    • Spindle Dia – 200 m
    • Horizontal Traverse – 8000 (x-axis)
    • Vertical Traverse – 5000 (y-axis)
    • Spindle Traverse – 2000 (z-axis)
    • Rotary Table – 2000 x 2000
    • Bed Plate Area – 11.50m x 5.80m This is a precision machine center which can carry out all types of machining operations like Boring, Milling, Drilling & Turning etc. to highest accuracy.

    CNC DRILLING MACHINE

    • Make – Batliboi
    • Model – BR-6 CNC
    • Drilling Capacity – Steel/CL:60/75mm
    • Boring – Steel/CL:120/150mm
    • Table working area – 1250mm x 1200mm
    • Application – Heat Exchanger (Tube sheet drilling), flange drilling, accuracy, precision are salient features.

    RADIAL ARM DRILLING MACHINE

    • Arm length – 800mm to 1800mm
    • Hole Diameter – 25mm to 1200mm
    • Quantity – 8 nos.

    CENTER LATHES CL-1 TO CL-10

    • Quantity – 10 nos.
    • Capabilities – Centre distance from 600mm to 3000mm

    VTL MACHINE

    • Make – PRASAD NC MACHINE PVT LTD
    • Type – DTCV-5000
    • SWING DIA- 5100 MM
    • CHUCK DIA-4500 MM
    • WORK PC HEIGHT-3500 MM
    • TABLE CAPACITY-60 MT
    • RAM TRAVEL-2000 MM
    • CNC LOGIC CONTROL-SIEMENS 802 DSL

    CUTTING MACHINE

    • CNC Cutting i) Make – SATO Germany ii) Bed Size – 3m x 12m iii) Cutting Capacity (Max) – 300 mm thk
    • Gas Cutting i) Pug Cutting machine for straight, circle cutting, and weld edge preparation. ii) Manual Cutting torches
    • Plasma Cutting Air plasma cutting machine (3 nos.) for cutting non-ferrous material, stainless steel, etc.
    • Plate Shearing Machine Capacity – 16mm x 3100mm of carbon steel. 12mm x 31mm of stainless & high tensile steels.

    PLATE EDGE PLANNER

    • Capacity – 12000mm lg x 100mm thk. This can make weld edge preparation of all profiles viz. V,U,J on all types of materials like carbon steel, stainless steel & other non-ferrous materials.

    TUBE BENDING MACHINE (CNC)

    • Capacity – Up to 3 inch diameter

    MOTORISED HYDRO TESTING PUMP

    • Capacity – Up to 400kg/sq.cm.

    BLASTING FACILITY

    Separate Room of Size 18 x 8 x 8 M, Trolly Capacity – 30 MT

    PAINTING FACILITY

    • Separate Room of Size 18 x 8 x 8 M, Trolly Capacity – 30 MT
